SYK-SSHI009 | SunSynk Hybrid Inverter 3.6kW + Dongle | 5 Year Warranty

Save R 2,100.00
SunsynkSKU: SS-1P-03K-H-LV

Price:
Sale priceR 21,895.00 Regular priceR 23,995.00

Tax included Shipping calculated at checkout

Description

DUE TO THE WEIGHT AND SIZE OF THE PRODUCTS WE ARE GOING TO SEND YOU A QUOTE ON SHIPPING BASED ON YOUR AREA AND SIZE OF THE ORDER

Sunsynk 3kW 1P Hybrid PV inverter 48v C/W Wifi Dongle IP65

Reduce your electricity costs by managing power from various energy sources.

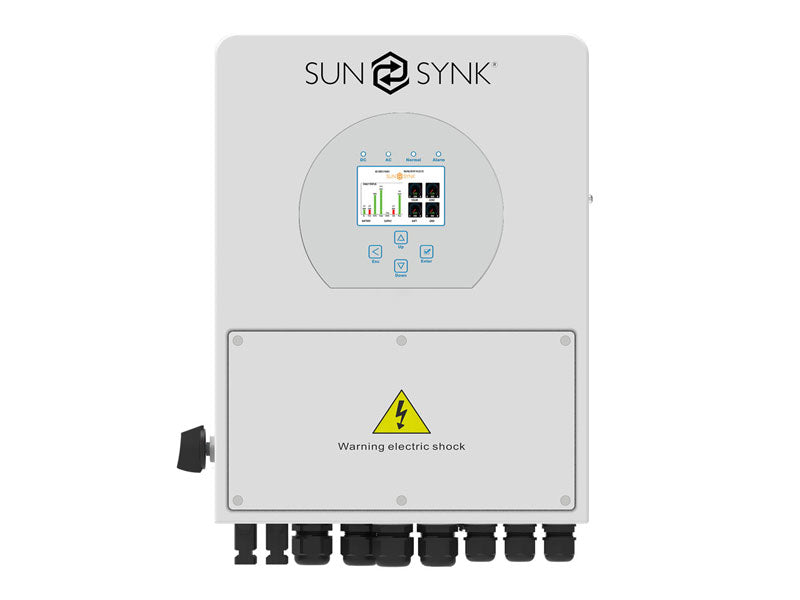

Sunsynk 3.6kW Hybrid Inverter

Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator, or even a wind turbine – all with a Sunsynk Hybrid Inverter. It’s ideal for home and business and scalable so that you can expand it as required.

The Sunsynk Single-Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid), and generators, and then effectively storing and releasing power as and when utilities require.

Start with UPS backup power (with batteries and inverter only) and add panels later.
• Start with Grid-tied (with panels and inverter only) and add batteries later.
• Install a complete Hybrid system including batteries and solar panels which can be expanded, or…
• Go totally off the grid with a completely independent system

Ideal for powering TVs, decoders, computer equipment, and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles, and toasters.

Sunsynk 3.6kW Hybrid Inverter specifications
  • Inputs:
    PV solar
    AC grid power
    Batteries
    Generator

  • Output voltage – 220/230/240Vac

  • Continuous power – 3600W

  • Backup power – 3600W

  • DC – 48V

  • Battery charger – 90A

  • Transfer time <= 10ms

  • Battery charger – adjustable for battery bank size and type
    Can charge Lead Acid and Li-ion batteries
    Li-ion battery charging self-adapts to BMS

  • Solar Input
    Max power input – 4680W
    Max V DC input – 370V (100V~500V)
    Max current input – 2 x 11A
    MPPTs – 1
    MPPT Range – 125~425V

  • Multi-core processor design and advanced MPPT control

  • High reliability and response speed

  • Programmable export

  • Works parallel on or off-grid

  • Single-phase operation

  • Multiple operating modes:
    Grid-tie only
    Hybrid
    Off-grid
    Battery only

  • Additional features
    AC coupled – For additional PV input
    6 stages time of use settings

  • ​IP65

  • Meter Port (Ecco model only)

Sunsynk 3.6kW Hybrid Inverter Features

INTERACTIVE
– Easy and simple to understand display
– Supporting Wi-Fi or GSM monitoring
– Visual power flow screen
– Smart settable 3-stage MPPT charging for optimized battery performance
– Auxiliary load function
– Parallel / multi-invert function grid-tied and off-grid

COMPATIBLE
– Compatible with main electrical grid voltages or power generators
– Compatible with wind turbines
– 220V single phase, pure sinewave inverter
– Self-consumption and feed-in to the grid
– Auto restart while AC is recovering
– Auto earth bond feature (Via a relay)

CONFIGURABLE
– Fully programmable controller
– Programmable supply priority for battery or grid
– Programmable multiple operation modes: on-grid/off-grid & UPS
– Configurable battery charging – current/voltage based on applications by LCD setting
– Configurable AC / solar / generator charger priority by LCD setting

SECURE
– Overload/over-temperature/short-circuit protection
– Smart battery charger design for optimized battery protection
– Limiting function installed to prevent excess power overflow to the grid

APPLICATIONS
– Marine (vessel power management)
– Power shedding (home/office/factory)
– UPS (fuel-saving systems)
– Remote locations with solar and wind generators
– Building sites
– Military locations
– Telecommunication
