Description

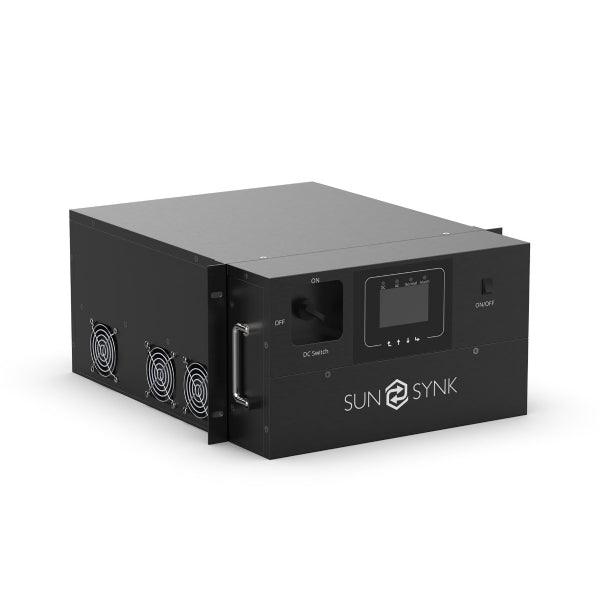

This highly efficient Sunsynk Rack-Mounted 7.6kW 1P Hybrid PV Inverter manages power flow from various sources including solar, mains power (grid) and generators by effective storage and release when power is required.
Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 40~60V
- Max. Charging Current: 190A
- Max. Discharging Current: 190A
- Charging Curve: 3 Stages/Equalisation
- External Temperature Sensor: Optional
- Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS
PV String Input Data
- Max. DC Input Power: 9880W
- PV Input Voltage: 370V (100V~500V)
- MPPT Range: 125~425V
- Start-up Voltage: 150V
- PV Input Current:22A+22A
- No. of MPPT Trackers: 2
- No. of Strings Per MPPT Tracker: 2+2
AC Output Data
- Rated AC Output and UPS Power: 7600W
- Max. AC Power: 8360W
- Peak Power (off-grid): 2 times of rated power, 10 S
- AC Output Rated Current: 31.7A/33A
- Max AC Output Current: 34.9A/36.3A
- Max Continuous AC Passthrough: 50A
- Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3), 230Vac(single phase)
- Grid Type: Split phase, 2/3 phase, Single phase
- Current Harmonic Distortion: THD<3%(Linear load<1.5%)
Efficiency
- Max. Efficiency: 97.60%
- MPPT Efficiency: 96.50%
- Euro Efficiency: 99.90%
Integrated Protection
- PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity
- Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output
- Shorted Protection, Output Over Voltage Protection
General Data
- Operating Temperature Range: -25~60°C, >45°C Derating
- Cooling: Fan
- Noise: <30
- Communication with BMS: RS485; CAN
- Warranty: 5 years
