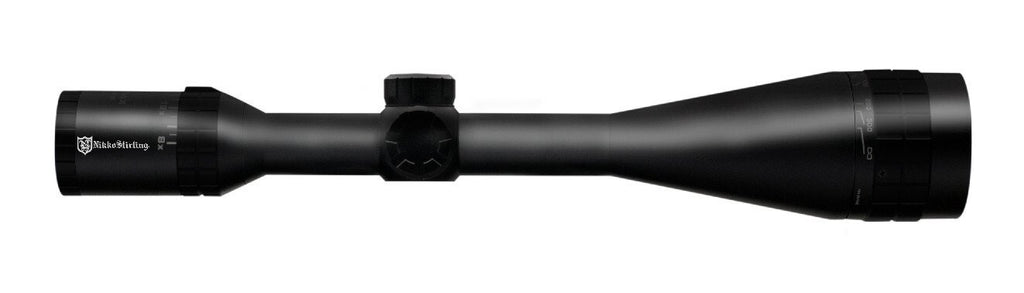

This series is packed with features. The Panamax series have been designed around an extremely wide angle field of view which is approx 20% more than the average comparable 1”scopes on the market today. Continuing with our proven hard anodized high grade aluminum main tubes the new design is not only visually appealing but also durable to handle heavy recoil rifles. Available as well with parallax adjustment on bell (AO) and illuminated reticle (IR). The illuminated models feature a red and green illuminated Half Mil Dot reticle and make it a top performer from Dawn-till-Dusk. This scope is sure to be a hit with hunters and recreational shooters everywhere.
Features
- Nikko Stirling Panamax Wide Angle Lens
- Extreme Field of View – approx 20% more than std 1” scope
- 1” Maintube
- ¼ MOA Increments (7mm@100m)
- Centerfire, rimfire and airgun rated
- AO models - Adjustable objective from 10 yards up to infinity
- Half Mil Dot reticle
- Fast eye focus
Specifications
| Magnification | 8 - 24 |
| Obj Diameter (mm) | 50 |
| FOV (m at 100m) | High Power: 1.8 Low Power: 5.5 |
| Click Value mm at 100m | 7 |
| E/W range (MOA) | Up/Down: 30 Left/Right: 30 |
| Eye Relief | High Power: 80 Low Power: 80 |
| Tube Diameter | 1 inch |
| Length (mm) | 369.5 |
| Weight (grams) | 650 |
| Parallax | 9.1 - ∞ |
| Illuminaed Reticle | Yes |
| Reticle | HMD |
