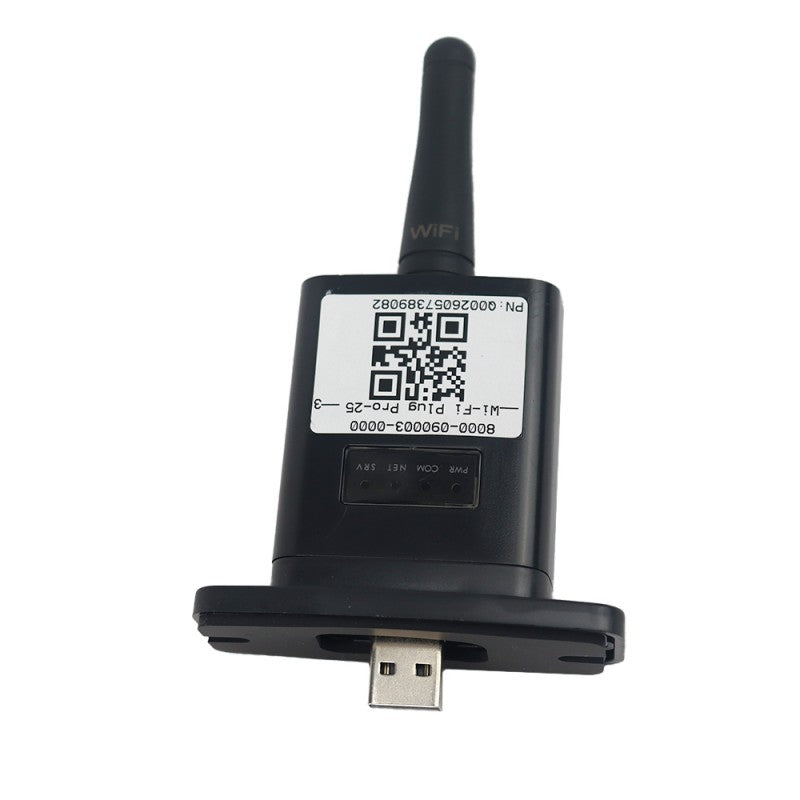

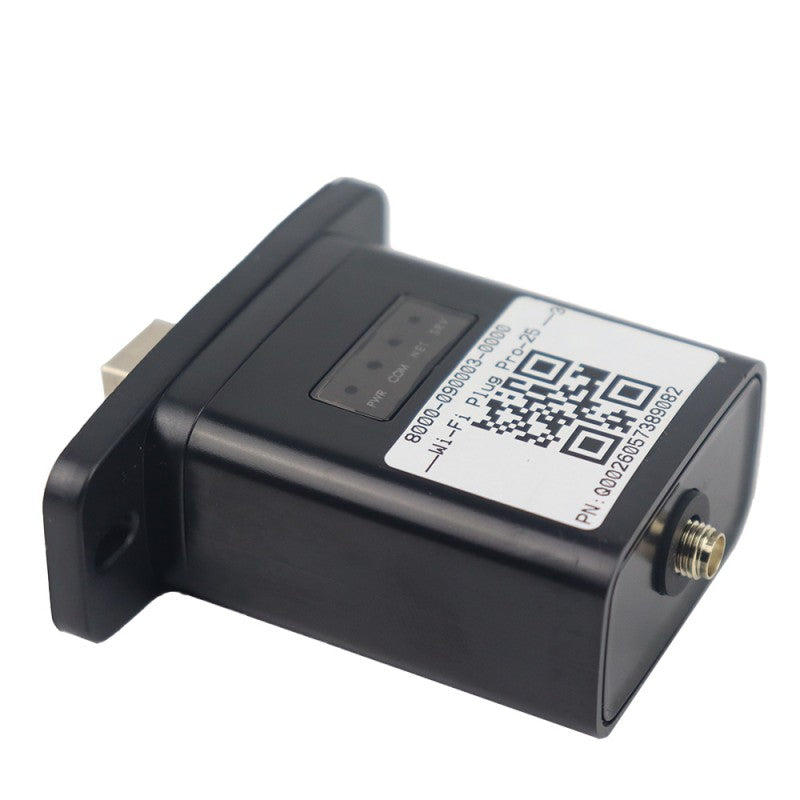

MUST WiFi Dongle for MUST and Esener Inverter - Data Logger | Remote Access Data

APP Download ( Android )

Please download the following APP in order to use the WIFI dongle:

http://app.shinemonitor.com/bin/APPtest/SmartESS/SmartESS_normal_3.19.1.1.apk

APP Download ( iOS)

Please download the following APP in order to use the WIFI dongle:

https://itunes.apple.com/us/app/smartess/id1334656760

1) Please first select " Default Node " Before creating a new account ( Top Left )

2) Manually connect to the dongle via your Mobile device's wifi ( Search for a D********* Wifi network, select connect once if available )

3) Click Network setting under " Tool box " after connecting to the dongle, and connect to your local wifi

4) Continue to register a new account

NB - The server can take up to 15min to register the new device

NB - Each Inverter Update can take up to 5min to push through.

Features

- The WIFI PLUG14 dongle for MUST inverters can enable wireless communication between off-grid inverters and monitoring platform
- In addition, users have complete and remote monitoring and controlling experience for inverters when combining Wi-Fi module with WatchPower APP
- Available for both iOS and Android based device *NEW APP VERSION*
- All data loggers and parameters are saved in iCloud

Specifications

- Maximum Current: 500 mA (5V)
- Input Voltage Range: DC 5V ~ DC 28 V
- Interface: USB-A
- Remote Communication: Wi-Fi
- Baud Rate: 9600 bps
- Data Collection Period: 1.5 s
- Operating Frequency: 2.412 ~ 2.484 GHz
- Communication Protocol: IEEE 802.11b/g/n
- Maximum Transfer Rate: 72 Mbps
- Signal Range: 100 m range without obstruction
- Parameter Settings: Web Server / Application / Remote Server
- Firmware Update: Remote web server
- Application Layer Protocol: Modbus-RTU
- Connection Functions: Mobile app monitoring, Parameter configuration
- Dimensions: 54 × 99 (109 incl. plug) × 28 mm  (W × H × D)
- Weight: 40 g
- Storage Temperature: -40°C ~ 90°C
- Please Note - Only Compatible with MUST PV18 Series 3KVA and 5KVA inverters
- Please Note - PV18 previous version has different mounting holes, but dongle will still work. New PV 18 Series will have correct mounting holes
