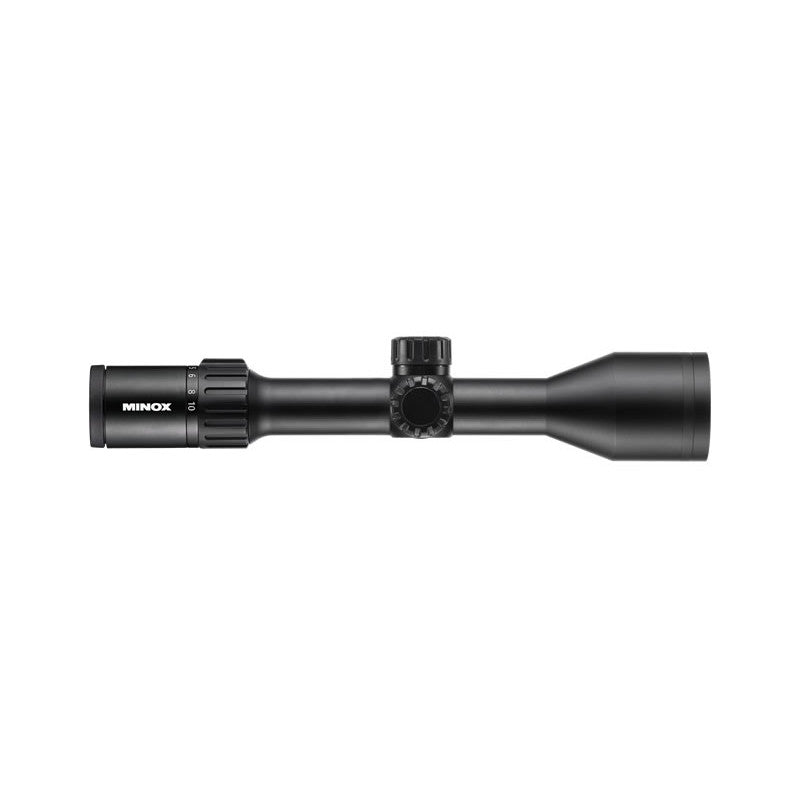

This Minox ZX5 2-10×50 scope with Plex Absehen reticle features a large field of view, special optical high-tech glass, sharpness and clarity in low light situations, M* multi-coating, 1/4 MOA elevation and windage adjustments, shock and scratch resistant aluminum housing, comfortable variable power adjustment, quick adjusting ocular, argon gas, and waterproof/fogproof internal lenses.
Minox ZX5 2-10x50 Specifications
| Manufacturer |
Minox |
| Riflescopes series |
Minox ZX5 |
| Made in |
- |
| In production since |
No |
| Warranty |
2 years |
| SKU |
66607c |
| Variable magnification
|
Yes |
| Minimal magnification. |
2x |
| Maximum magnification. |
10x |
| Diopter range
|
-3 to 2.5 dptr. |
| Lens diameter.
|
50 mm |
| Min. exit pupil. |
5 mm |
| Max. exit pupil. |
11.4 mm |
| Min. field of view. |
4m/100m |
| Max. field of view. |
18.9m/100m |
| Min. eye relief. |
100mm |
| Max. eye relief. |
100mm |
| Twilight Factor
|
- |
| Light transmission
|
- |
| Fast focus eyepiece
|
Yes |
| Adjustment per click
|
7mm/100m - 1/4MOA |
| Turret Type
|
Capped |
| Turret locking |
No |
| Zero Stop |
No |
| Nr. Turret Turns
|
MT - Multi Turn |
| Turret rotation direction |
CCW |
| Elevation (mrad).
|
11.04mrad |
| Elevation (MOA). |
0MOA |
| Windage (mrad).
|
11.04mrad |
| Windage (MOA). |
0MOA |
| Elevation Per Turn
|
- |
| Reticle position
|
2. focal plane - SFP |
| Reticle illumination
|
No |
| Illumination color
|
No |
| Daytime-usable illumination
|
No |
| Auto Turn-Off
|
No |
| Dot size. |
0MOA |
| Parallax setting
|
- |
| Parallax adjustment
|
No |
| Parallax adj. range
|
- |
| Length. |
335 mm |
| Weight. |
630g |
| Color |
No |
| Working temperature range |
-10 °C / +50 °C |
| Power Supply |
No |
| Filled with
|
Argon |
| Lens coating
|
Fully Multicoated |
| Tube diameter
|
30 mm |
| Mounting rail. |
No |
| Scope Rail Standard |
No |
| Mount rail type
|
No |
| Mount length. |
0mm |
| Objective diameter
|
57 mm |
| Eyepiece diameter
|
43 mm |
| Mounting Standard |
N/A |
| Waterproof
|
Yes |
| Fogproof
|
Yes |
| Shockproof |
Yes |
| Built-in rangefinder |
No |
