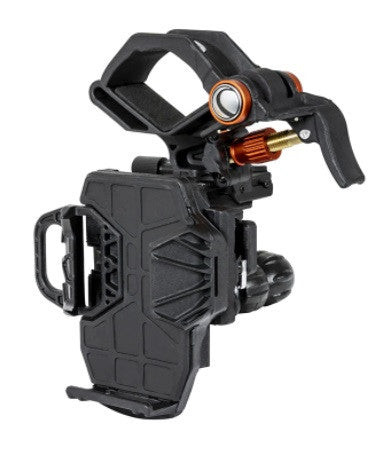

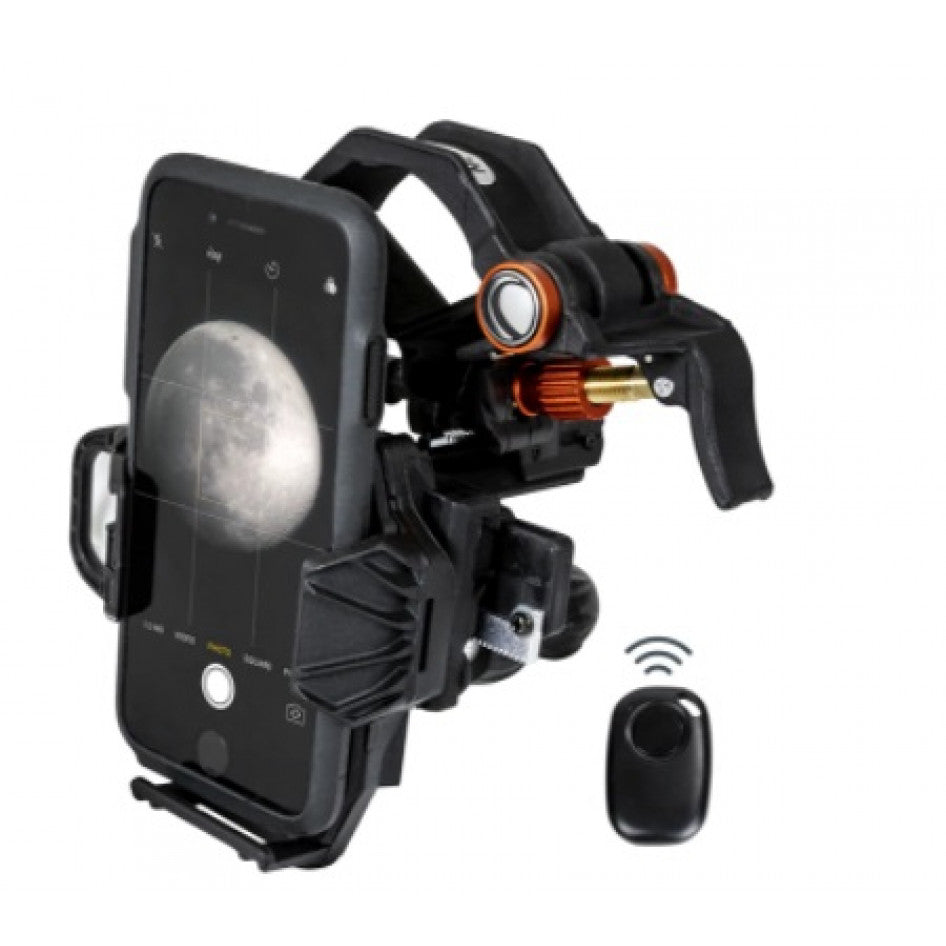

The Celestron NexYZ DX Smartphone Adapter Kit fits any eyepiece from 35mm to 60mm in diameter, including telescopes equipped with 1.25" or 2" eyepieces, spotting scopes, monoculars, and binoculars. NexYZ also attaches to microscopes with the addition of an included adapter ring, which takes the usable diameter down to 25mm, the size of a standard microscope eyepiece.
The NexYZ DX Kit accommodates a wide range of smartphones, including the larger phablets like the iPhone 8 Plus and latest Samsung Galaxy devices. The phone platform is fully adjustable and can fit any device - usually with the case still on. The secure platform stands up to the weight of these heavier devices with ease, thanks to NexYZs strong metal spring and threaded twist lock.
Features
Nexyz connects your smartphone to an eyepiece while the bluetooth shutter release button helps you get a steady shot every time
Nexyzs patented design works with telescopes (with most 1.25 or 2 eyepieces), spotting scopes, binoculars, monoculars, and microscopes
Connect the remote shutter release to your phone via bluetooth to take photos or start/stop video recording without unwanted vibration
Both devices work with virtually all smartphone models, including the latest devices from apple, samsung, and gooThree directional knobs (x-, y-, and z-axis) that perfectly align your phone's camera with the eyepiece in seconds
Stands up to rigorous field use thanks to its robust, durable construction with a metal frame and polymer body
Specifications
Compatible Optics Telescopes, Binoculars, Spotting Scopes, Monoculars and Microscopes
Eyepiece Clamp Style Spring Loaded w/ lock down knob
Eyepiece Clamp Range 35mm - 60mm (1.37" - 2.36")
Phone Clamp Style Easy load with internal spring
Phone Clamp Range 65mm - 90mm (2.55" - 3.54")
Fine Adjustment Style X,Y,Z Motion- Controlled by knobs with rack and pinion system
Materials Cast Metal/ Injection molded Fiber reinforced Plastic

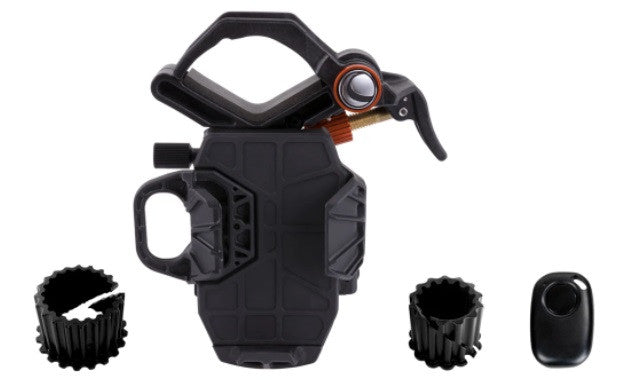

Accessories 2x Adapters for microscope eyepieces, Bluetooth Shutter Release Remote, Cr-2032 Battery
Dimensions (Open) TBD
Dimensions (Closed) 165.1mm x 139.7mm x 107.95mm (6.50" x 5.50" x 4.25")
Weight 10 oz ( 283 g)
