Description

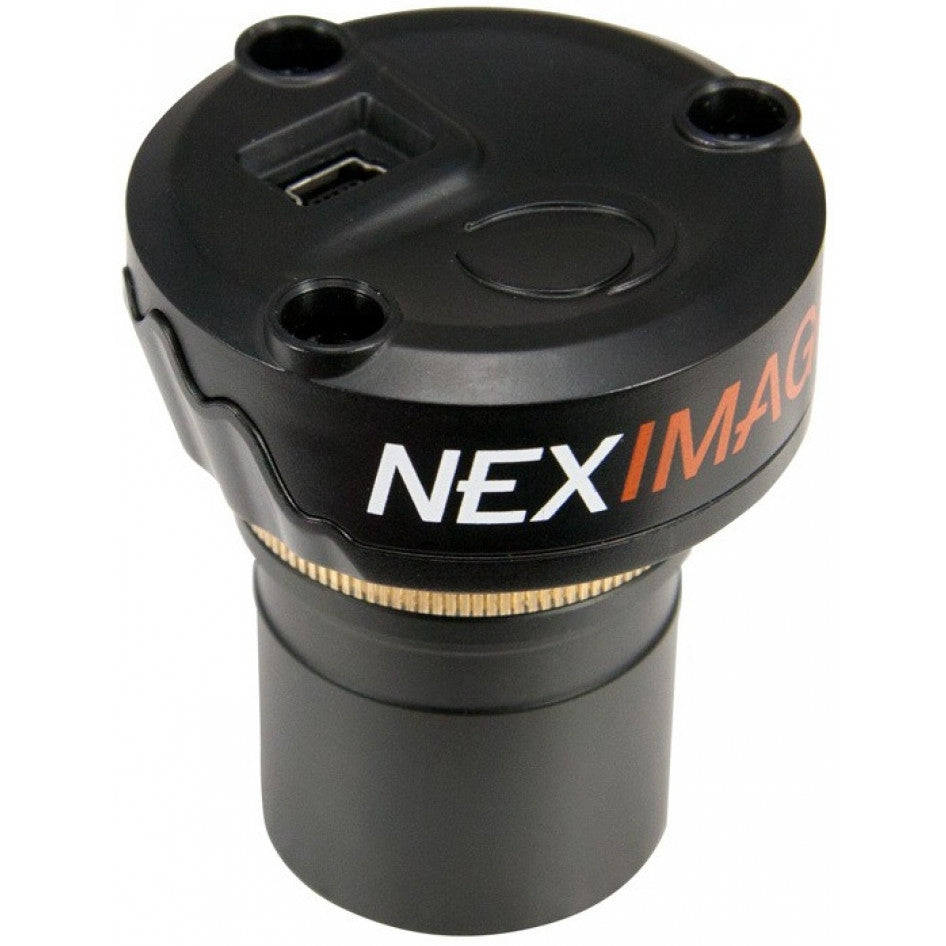

Capture high-resolution planetary, lunar and solar images with almost any telescope with the NexImage 5 Solar System Imager. Combined with the included software package, NexImage 5 brings out tremendous detail and produces images rivaling those taken with astronomical cameras costing hundreds more.
Simply point your telescope at the Moon or a planet and record a quick video. The included software analyzes each frame of video, throws away the fuzzy ones, and perfectly aligns the remaining images. The result is a bright, clear image with the maximum amount of color and detail. NexImage 5 is a great way to get started with astroimaging, especially if you live in a light-polluted area. If you can see the planet the sky, you can image it with NexImage 5!
Features
5 Mega pixel color sensor with Micron DigitalClarity technology to dramatically reduce image noise levels
Small pixel sizes provide sub arc-second planetary detail with most telescopes
View and capture live video on your computer
Software automatically filters out video frames most affected by poor atmospheric conditions, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image
Camera control software allows you to manually change the gain, contrast, exposure time, frame rate and color saturation using your PC
Selectable region of interest sub-framing
Machined aluminum 1.25" adapter barrel with C-threads for direct threaded connection to almost any telescope
Can be used with standard 1.25 eyepiece filters
Integrated IR-cut optical window
2x2 and 4x4 binning capability in color
Progressive scan
Includes USB 2.0 cable
Specifications
Mounting 1.25" barrel nose piece
Camera Resolution 5MP - 9 different settings to choose from ranging from 640x480 to 2592x1944
Sensor Size 5.7mm x 4.28mm (7 mm diagonal)
Pixel Size 2.2 micron square
Frames per Second 6.23 to 52.37 at the lowest resolution, 0.71 to 5.99 at the highest resolution
Shutter Speeds 1/10000 to 30 seconds

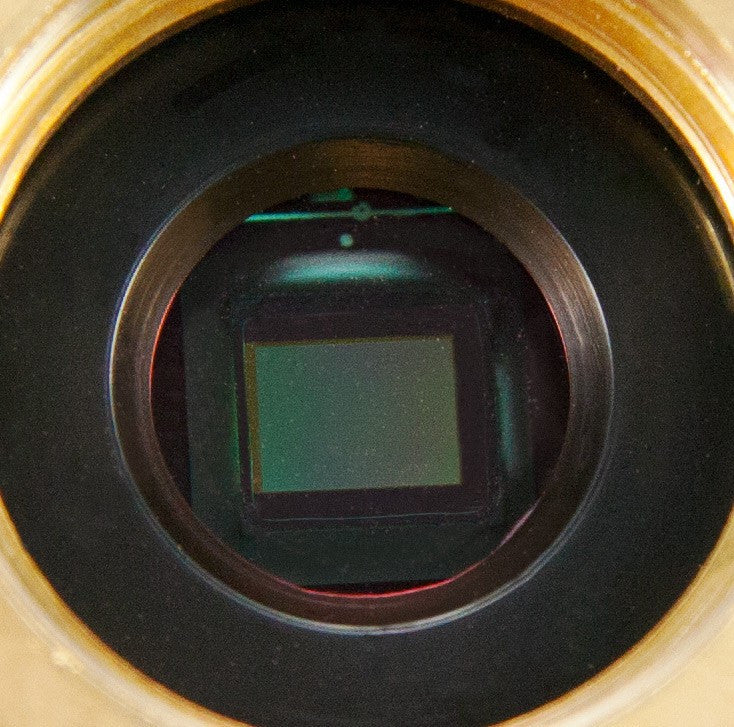

Chip 1/2.5" format, color CMOS Sensor
Sensitivity .53 V/ lux-sec (@550nm)
USB Cable High-Speed USB 2.0 cable
