AHD CCTV TESTER | 3.5 LCD | ADSL TEST | RJ45 TEST POE TEST

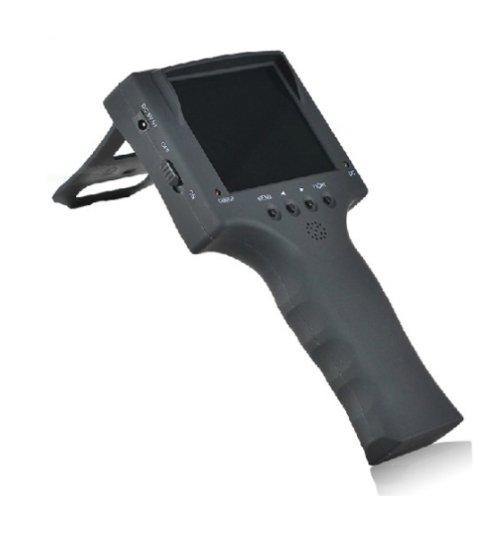

This is a 3.5''TFT LCD CCTV Network video monitor tester, it is an ideal equipment for installing and inspecting engineering, can be widely used for camera testing, video cable transmit testing or network cable testing, easy to operate.
Features:
- Best system equipment for installing and inspecting engineering. Built-in Li battery; video-in terminal and DC power supply. Palm size, easy to carry and operate.
- Through DC power out enables user to inspect; correct camera or confirm installation. It's convenient for video equipment that helps communication and discussion with clients during installation process.
- Monitor: Camera quality inspecting; image of installation correcting; inspect and repair of monitor system circuit…… etc.
Specifications:
Mainframe
Display
|
3.5''TFT Color LCD
|
Image Resolution
|
640X480
|
Video In
|
Video In × 1 (BNC connector)
|
Power out
|
DC power out × 1 (Support CCD camera of power source/ Max electric currency 400mA)
|
System Format
|
NTSC / PAL
|
Status Indicator
|
2 LED (Power IND = Green / Charging IND =Red)
|
Power Source
|
Built-in rechargeable Lithium battery : 3.7V 2000mA
|
Power Source
|
External power :DC 5V 1.0A Adapter
|
Dimension/ Wight
|
180mm (L) x 98mm (W) x 30mm(H) / 250g
|
