Description

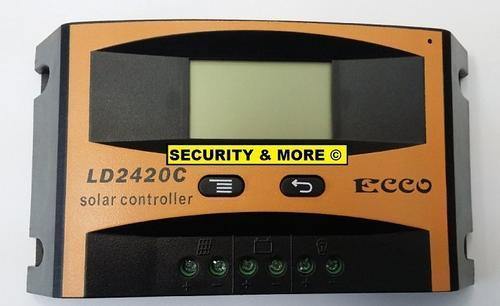

0-30A Solar Regulator
A charge controller, or charge regulator is basically a voltage or current regulator to keep batteries from overcharging. It regulates the voltage and current coming from the solar panels going to the battery.
Parameter:
|
Model |
ST1-30 |
ST1-40 |
|
|
Rated voltage |
12V/24V Automatic voltage recognition |
||
|
Max charge current |
30A |
40A |
|
|
Max discharge current |
30A |
40A |
|
|
Full charge cut |
16.5V/33V |
||
|
Low voltage cut |
11V/22V |
||
|
Low voltage restore |
12.6V/25.2V |
||
|
Temperature compensation |
-3mv/¿/cell |
||
|
Static current |
≤45mA |
||
|
Voltage drop |
<220mv |
<240mv |
|
|
Wire area max |
6mm2 |
||
|
Net Weight |
400g |
||
|
¿ross Wight |
500g |
||
|
Size (L*W*H) |
210*120*50 mm |
||
|
Packing quantity |
30pcs/carton |
||
|
Carton size (L*W*H) |
455*380*270 mm |
||
Feature:
- CPU controlled with PWM function: able to adjust the charge current and decide if to supply the loads electricity according to the voltage of battery;
- Compensation charging: according to various system temperatures, the controller will automatically compensate the temperature of the charging voltage;
- LCD monitor: showing the charging current, battery voltage, environment temperature and real-time data of the charging process;
- Temperature sensor: probing the temperature of environment and indicating the degree of charging.
- Automatic Identification System Voltage, 12V/24V auto recognition.
- Completed technical data for setup and modify.
- Discharge capacity control
- Discharge Counter of Ampere Hour
- Working Storage Function: record the total run time of system, record timers of error during running time, record times of full charged battery.
- Over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.
Application:
This solar charger controller is suitable for solar panel charger system and the basic element for the whole solar power system.
