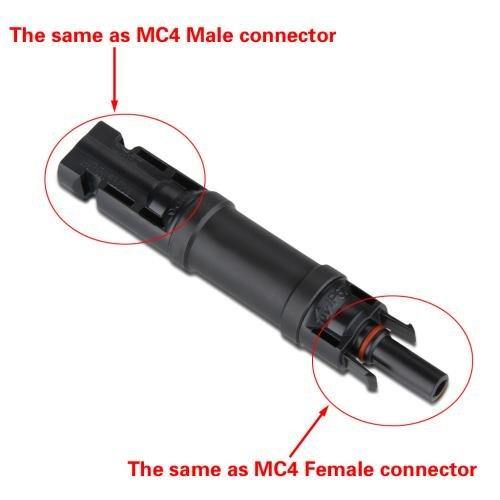

20A In-line MC4 PV Solar Fuse | Fuse Holder Cable Connector 20 Amp 1000V DC

  • R 160.00




20A In-line MC4 PV Solar Fuse | Fuse Holder Cable Connector 20 Amp 1000V DC




Description:

This high quality IP67 rated connector is designed to protect solar panels from current backflow.

This is a recommended investment to protect your valuable investment in solar panels.








Feature:

  • 20A in-line Diode Connector Solar Panel Cable Connectors
  • Practical connector used between Solar panel and switch box to prevent the reversal of current.
  • Contacts for the connector are copper, coated with tin for easy solder adhesion. Each end nuts comes with rubber bushings for air tightening.
  • This MC4 connector is rated as IP67. IP (Ingress Protection) ratings the first numeral refers to the level of dust resistance and the second numeral refers to the level of water resistance.
  • Diode built in the connector
  • TUV-approved Connector head



Specification:

MC4 Connector Material: PPO, PC

Degree of protection: IP67

Rated current: 20A

Flame class: UL94-V0

Rated voltage: 1000V(TUV)&600V(UL)

Safety class: II

Test voltage: 6kV(50Hz,lmin)

Insertion force/withdrawal force: ≤50N/≥50N

Pin dimensions: F4.0mm

Connecting System: Crimp connection

Contact resistance of plug connector: ≤5mΩ

Temperature range: (-40¿ ~ +85¿)

Contact material: Copper, Tin plated

Highest Temperature: 110¿

Insulation material: PPO



Package:

  • 1x PV Diode Connector
